Assignment

Develop an understandable and user friendly human machine interface,and design the control unit in correspondence with the exterior.

Client
Aebi Schmidt

Services
Design

Engineering

Communication and control

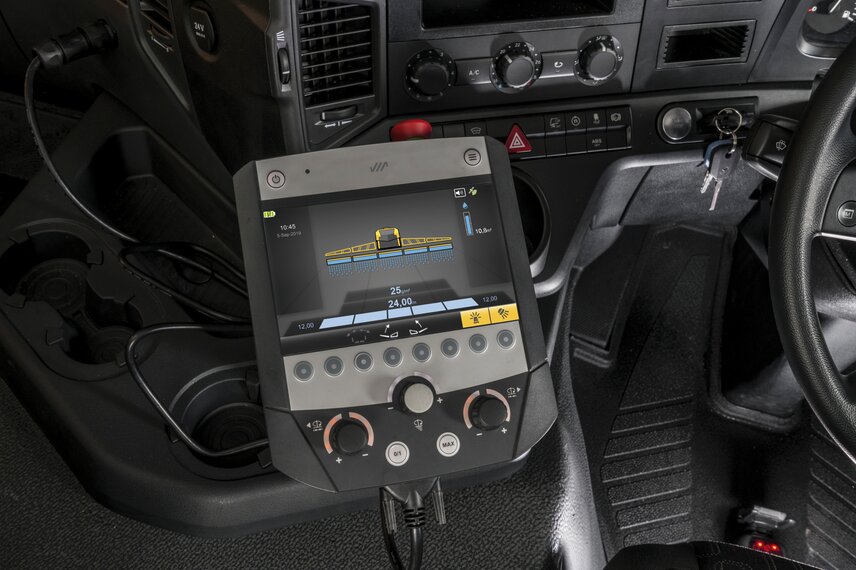

Safe and accurate control via control panel in the driver’s cab.

Design for refurbishment & recycling

The User interaction is guided by quick and reliable operation, due to the graphic colour touch screen, click-turn knobs and push buttons. The push buttons are assigned application specific and therefore allow the driver to concentrate exclusively on driving.

Graphical user interface

Big icons and clear graphics always provide ideal understanding and oversight. With the spray arm position visible on the display panel, the driver is in full control and collisions can be easily avoided.

Graphical user interface

Big icons and clear graphics always provide ideal understanding and oversight. With the spray arm position visible on the display panel, the driver is in full control and collisions can be easily avoided.

Ideation & Concept development
