Assignment

Develop a new cath lab with the newest high-end imaging technology, very efficient in construction and functionality, with high-end design. The Pinnacle is an international design concept, with a lower dose and superior image quality. Specific design choices were made to provide a perfect surgery environment in 95% of all surgery situations, which resulted in a dramatic cost price reduction.

Client
Innvolution Imaging Technology

Year

2018

Services
Design

Engineering

Awards
  • Red Dot Winner 2018
  • Good Design 2019
  • India Design Mark 2019

The Pinnacle is the worlds smallest, fixed flat panel Cath lab

The Pinnacle is versatile and allows for precise adjustments to facilitate imaging in a multitude of medical procedures. The unique software of Innvolution Imaging is integrated into a functional and effective tablet, that is part of the advanced control panel with joysticks.

C-Arm with impressive flexibility

The C-Arm of the Pinnacle can turn in both directions and additionally rotate around the table to ideally capture the patient. The flat panel detector can move independently up and down, and allows for even deeper angles during the procedures.

Ergonomic table and fine control

The carbon fibre based table is designed to ease the transfer of patients with adjustable table heights and table swivel. It is equipped with a unique joy stick based control panel that allows fine adjustments for ideal imaging.

Ergonomic table and fine control

The carbon fibre based table is designed to ease the transfer of patients with adjustable table heights and table swivel. It is equipped with a unique joy stick based control panel that allows fine adjustments for ideal imaging.

Redefining medical imaging standards

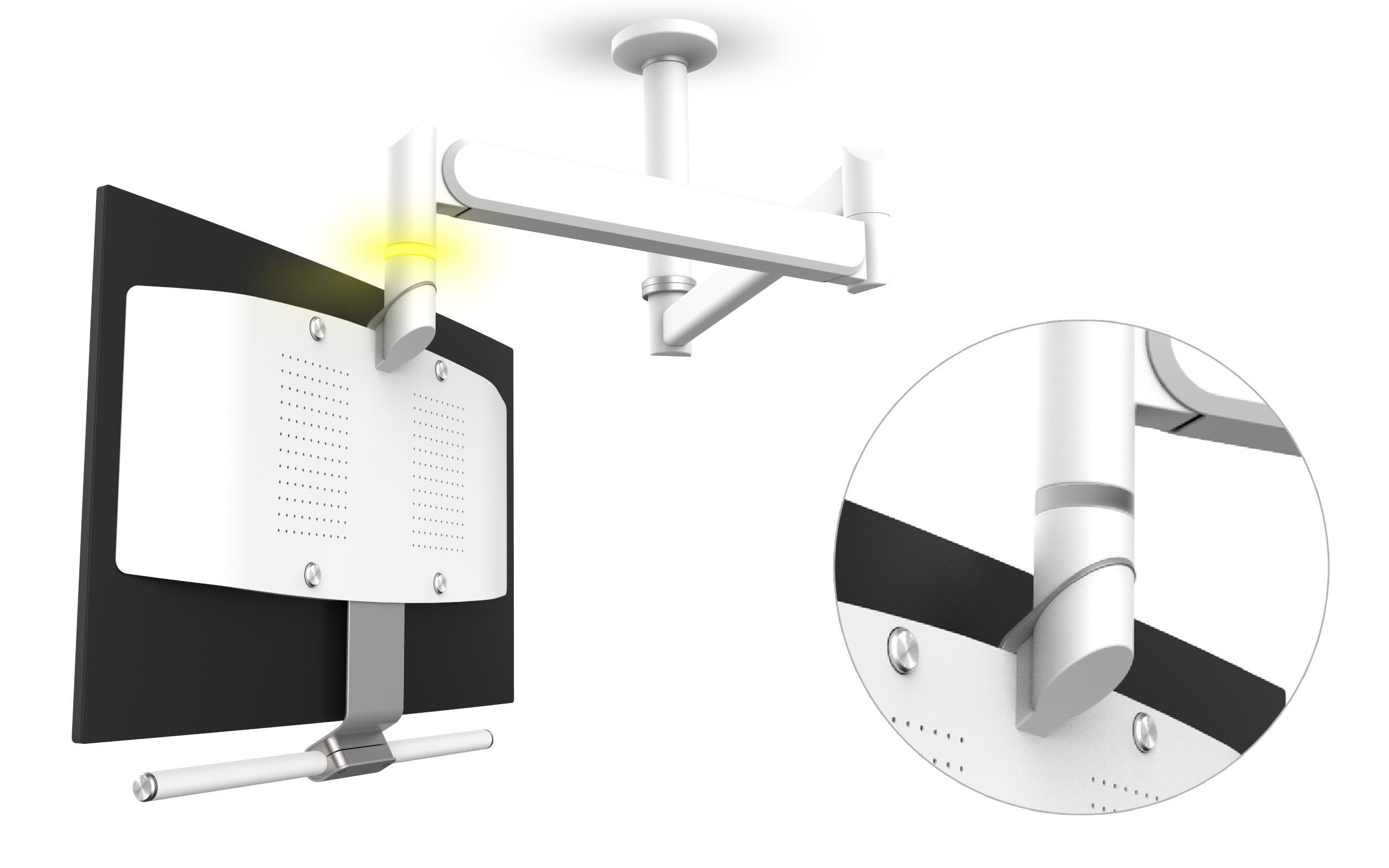

A 55 inch monitor on a flexible arm, allows the medical operator to perfectly place the screen and have the crucial information always visible and at hand.
